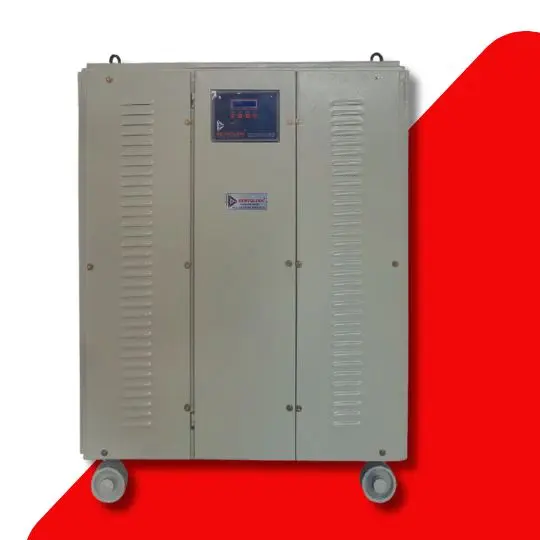

Air Cooled Servo Voltage Stabilizer

Air-cooled servo voltage stabilizers find applications in various sectors due to their ability to provide a stable power supply. Some common uses include:

• Industrial Equipment: Protects industrial machinery, CNC machines, manufacturing equipment, and production lines from voltage fluctuations.
• Medical Devices: Ensures a consistent power supply for sensitive medical equipment such as MRI machines, X-ray machines, and laboratory instruments.
• Data Centers: Maintains a stable voltage for servers, networking equipment, and data storage systems to prevent data loss and hardware damage.
• Commercial Establishments: Protects computers, point-of-sale systems, lighting, and other electronic devices in offices, hotels, and retail stores.
• Residential Applications: Guards household appliances, home entertainment systems, air conditioning units, and refrigerators from voltage irregularities.
• Telecommunication Infrastructure: Ensures stable power supply for communication towers, base stations, and other telecom equipment.

• Input Voltage Sensing: The stabilizer continuously monitors the incoming voltage from the main power supply using a voltage sensing circuit.
• Comparison and Control: The sensed input voltage is compared to a preset reference voltage (usually the desired output voltage level). If the input voltage deviates from the reference, the control circuitry takes action.
• Servo Motor and Buck-Boost Transformer: The heart of the stabilizer is the servo motor and the buck-boost transformer. The servo motor receives control signals from the control circuit. When the input voltage varies, the servo motor adjusts the position of the buck-boost transformer.
• Buck-Boost Transformer Operation: The buck-boost transformer has multiple taps that can be selected to increase or decrease the output voltage. If the input voltage is higher than the reference, the stabilizer lowers the output voltage by moving the servo motor to reduce the number of coil windings used. Conversely, if the input voltage is lower, the stabilizer increases the output voltage by increasing the number of coil windings.
• Feedback Mechanism: As the output voltage approaches the desired level, the feedback mechanism detects this and instructs the servo motor to stop adjusting the transformer.
• Cooling System: Air-cooled stabilizers incorporate fans or other cooling mechanisms to dissipate heat generated during operation. This ensures that the stabilizer can work efficiently and maintain its performance over extended periods.

Overall, the air-cooled servo voltage stabilizer plays a critical role in maintaining a consistent and safe power supply for various sensitive electronic and electrical equipment, preventing potential damage and ensuring optimal performance.
